AF ATELIERS FRANCOIS AIR COMPRESSOR PARTS AND ACCESSORIES FOR SALE IN ASIA. Buy af ateliers francois parts online for your af ateliers francois air compressor at the lowest prices in Asia. It is very Quick, Easy and Simple! We export and sell af ateliers francois air compressor parts to Qatar, Japan, Turkey, Jordan, China, India, UAE, Dubai, Russia, Hong Kong. NPS Compressed Air Parts is a worldwide distributor and supplier of premium high-quality af ateliers francois air compressor products including: New Airends replacement parts in in Asia Tanks and Timers for ingersoll rand air compressors in in Asia Seal Kits replacement in in Asia Compressed air Air Filters spare parts in in Asia Oil Filters replacement for ingersoll rand air compressors in in Asia Atlas Copco Service Kits in in Asia Atlas copco air compressor Adsorber and Coalescer Filters in in Asia Ingersoll Rand air compressor Air Filters in in Asia Temperature Sensors spare parts in in Asia Air compressor Oil and Lubricants replacement in in Asia

AF Ateliers Francois Air Compressor Parts in Asia

HIGH QUALITY
AIR COMPRESSOR
SPARE PARTS

INGERSOLL RAND  ATLAS COPCO

AF Ateliers Francois Spare Parts for Sale

NPS Compressed Air Parts is a Worldwide distributor and supplier of Genuine OEM and Compatible Aftermarket AF Ateliers Francois Air Compressor Parts designed specifically for your AF Ateliers Francois Air Compressor machine in Asia, Russia, China, KSA, India. As the Leading Supplier of OEM and Aftermarket AF Ateliers Francois Air Compressor Spare Parts, you can count on NPS Compressed Air Parts to provide you with the Correct Spare Parts for your AF Ateliers Francois Air Compressor.

NPS Compressed Air Parts is your source for replacement parts and everything else you need to keep your AF Ateliers Francois Air Compressor machine running efficiently, effectively and at full capacity from AF Ateliers Francois Air Filters in Asia, AF Ateliers Francois Oil Filters in Asia, AF Ateliers Francois Separators in Asia, Valves, Sensors, AF Ateliers Francois Lubricants and Oil in Asia, New AF Ateliers Francois Air Compressors, AF Ateliers Francois Air Compressor Repair and AF Ateliers Francois Service Kits in Asia.

Briefly About AF Ateliers Francois

AF Compressors also know as Ateliers François was originally founded in 1870 in Liège, Belgium. It started off originally by building mining hammers but later on it moved into reciprocating air compressors. In the 1960s AF pioneered oil-free piston compressors with the PTFE piston rings for food and brewing industries as well as other industries. By the 1980s the company entered the PET-bottle industry, developing high-pressure oil-free compressors, and by 2000 it was a leading PET compressor supplier.

NPS Compressed Air Parts offers Ateliers Francois air compressor parts and complete compressed air systems for the generation, treatment and delivery of compressed air energy. The compressed air systems aim at optimal economy and efficiency in UAE, Qatar, Dubai, Hong Kong, China, Turkey, Jordan, Russia, Japan, India.

Ateliers Francois is a company name known for its top-grade technology in the whole compressed air and Air Compressor industry and market sector..

What AF Ateliers Francois Specialize In

AF focuses exclusively on oil-free reciprocating (piston) compressors, especially for clean-air and PET bottling applications. Their compressors deliver 100% oil-free air which meant that there is no risk of oil contamination, which is critical for food, beverage, and packaging industries. AF's products are known worldwide for reliability in PET blow-molding and other processes requiring very clean compressed air.

We Supply Air Compressor Parts for all these Models

AF's popular models include high-pressure piston compressor series for PET bottling and lower-pressure utility air. For example, the CE-series (e.g. CE24, CE46, CE68 variants) are 3-stage oil-free compressors delivering 15-40 bar, widely used in European and Middle Eastern PET plants. For 8-10 bar applications, the OPC-series is common (e.g. OPC 45-75, OPC 90-132, OPC 160-200, OPC 250-355). AF also offers large multi-stage L-series compressors (L3, L4, L5, etc.) for very high output PET systems.

We Provide and supply all necessary Air Compressor Parts for Ateliers Francois Air Compressors with the following Models:

  • CE24 series (oil-free, 15-40 bar high-pressure compressors)
  • CE46 series (oil-free, high-pressure compressors) - CE46A/B/S/XS
  • CE68B compressor (oil-free, PET high-pressure) - CE68A/B
  • OPC 45-75 (8 bar, 7-13.8 m³/min)
  • OPC 90-132 (8-10 bar, 15-23 m³/min)
  • OPC 160-200 (8 bar, 24-32 m³/min)
  • OPC 250-355 (8-10 bar, 38-58 m³/min)
  • L-series (e.g. L4, L5, L7) large multi-stage PET compressors

Service & Parts

WE OFFER 4000-HOUR & 8000-HOUR SERVICE KITS AND MAINTENANCE PARTS. PISTONS, PISTON ROD, CYLINDER, CYLINDER HEAD

ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts
ateliers francois air compressor parts

Find all the AF Ateliers Francois Air Compressor Parts in Asia here or give us a call for faster service and expedited shipping. Some of our Offered Products for AF Ateliers Francois air compressors include air filters, oil filters, lubricants and oil, valves, switches, sensors, water and oil separators anywhere in Asia, Russia, China, KSA, India.

Shop online for Replacement Spare Parts for your AF Ateliers Francois Air Compressor at the lowest prices in the market. As a worldwide distributor of AF Ateliers Francois Air Compressor Spare Parts, we export products to Hong Kong, Russia, Dubai, UAE, India, China, Jordan, Turkey, Japan, Qatar.

NPS Compressed Air Parts offers a full range of Services designed for your AF Ateliers Francois Air Compressors including Installations, AF Ateliers Francois Air Compressor Repairs, Airend Overhaul, Inspections, Audits and Maintenance in China, Dubai, Hong Kong, India, Japan, Jordan, Qatar, Russia, Turkey, UAE.

To learn more about the Products & Services we offer for yourAF Ateliers Francois air compressor machine please Send Us an Email

AF Ateliers Francois Air Compressor Parts in Asia:

  • AF Ateliers Francois Airends replacement parts around me

  • AF Ateliers Francois compressed air replacement Tanks and Timers for sale

  • AF Ateliers Francois air compressor Seal Kits for sale

  • air compressor Air Filters for AF Ateliers Francois

  • replacement Oil Filters for AF Ateliers Francois air compressors for sale

  • shop online for AF Ateliers Francois Service Kits air compressors

  • shop for Adsorber and Coalescer Filters for AF Ateliers Francois air compressors

  • Air Filters for AF Ateliers Francois compressed air systems

  • buy air compressor Temperature Sensors for AF Ateliers Francois air compressors

  • cheap AF Ateliers Francois Oil and Lubricants for sale

Featured AF Ateliers Francois Air Compressor Parts

Click Collapse All then Click A Model Number to View Related Parts

1ST STAGE OUTLET VALVE REPAIR KITS
20K103A4843I

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6048

X 8

Copper ring valve

20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J309021

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314A842021

X 1

Gasket for scrapper box

20J314A6100/1

X 8

O-ring valve cover

20B105A7498/1

X 4

Packing ring

20B520A7005/4

X 1

Packing ring

20S243A882011

X 1

Rider piston ring

20B108A7005/2

X 1

Scrapper rings

20S241A882012

X 2

Sealing piston ring

20J300KZ7269

X 4

Unloader gasket

20D311KZ1026

X 4

Unloader guiding

20M32086544592

X 4

Unloader membrane

2ND STAGE COOLING SYSTEM MAINTENANCE
40R24067/1034

X 1

2nd stage cooler

40R24067/906

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S471A4090I

X 1

2nd stage inlet valve

20S473A4091I

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J312A6007

X 2

Copper ring valve 2nd stage

20B105A4524/1

X 1

Inlet separator 2nd stage

20J314A6000/1

X 2

O-ring valve cover 2nd stage

20J309A90957

X 2

Outlet separator 2nd stage

20S243A8210/4

X 2

Rider piston ring 2nd stage

20S241A4692

X 2

Sealing piston ring 2nd stage

20J300KZ7269

X 4

Unloader gasket 2nd stage

20D311KZ1026

X 4

Unloader guiding 2nd stage

20M32086544592

X 4

Unloader membrane 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/1

X 1

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471A7491/1

X 1

3rd stage inlet valve

20S473A7491/3

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20J300A6041/1

X 2

Copper ring valve 3rd stage

20J309A90957

X 2

Gasket in/out 3rd cylinder

20J314A6100

X 2

O-ring valve cover 3rd stage

20S243A8212/3W

X 1

Rider piston ring 3rd stage

20S241052W

X 5

Sealing piston ring 3rd stage

20J300KZ7269

X 4

Unloader gasket 3rd stage

20D311KZ1026

X 4

Unloader guiding 3rd stage

20M32086544592

X 4

Unloader membrane 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J309049

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314A842021

X 1

Gasket for scrapper box

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20B108A7005/2

X 1

Scrapper rings

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K101A4090I

X 1

2nd stage inlet valve repair kit

20K103A4091I

X 1

2nd stage outlet valve repair kit

20K101A7491/1

X 1

3rd stage inlet valve repair kit

20K103A7491/3

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S471A4842I

X 4

1st stage inlet valve

20K101A4842I

X 4

1st stage inlet valve repair kit

20S473A4843I

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
40R24067/906

X 1

1st stage cooler

40F10067/906

X 1

1st stage pipe bundle

40F10067/906

X 1

2nd stage pipe bundle

40F10267/1034

X 1

Final cooler pipe bundle

20J300A7225/6

X 1

Intlet 2nd stage gasket

20J309A90957

X 2

Intlet 3rd stage gasket

20J309A90961

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4524/1

X 1

1st stage cooler gasket

20B105A4524/1

X 1

2nd stage cooler gasket

20J309A90957

X 2

Air tank outlet gasket

DRIVE BELTS
20C791003

X 1

Belts

BEARINGS
20C800A8219/9

X 2

Big end bearing

CONNECTING RODS
20V323A3884/1

X 4

Connecting rod screws

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/2

X 2

Crosshead visit door gasket

20G52417105050

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 1

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 1

Dryer filter O-ring

OIL FILTER GASKETS
73J300A98015

X 1

Oil filter gasket

SUCTION & VACUUM PUMPS
20C170A815014

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K103A7499/2

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve

20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J310006

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314a842021

X 1

Gasket for scrapper box

20J314A6100/1

X 8

O-ring valve cover

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S243A7493/2

X 1

Rider piston ring

20B108A7005/2

X 1

Scrapper rings

20S241A7493/1

X 2

Sealing piston ring

20J300KZ7269

X 4

Unloader gasket

20D311KZ1026

X 4

Unloader guiding

20M32086544592

X 4

Unloader mambrane

2ND STAGE COOLING SYSTEM MAINTENANCE
40R24067/1034

X 1

2nd stage cooler

40R24067/906

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S471A7499/3

X 1

2nd stage inlet valve

20S473A7499/4

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve 2nd stage

20B105A4524/1

X 1

Inlet separator 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/1

X 1

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471A7491/1

X 1

3rd stage inlet valve

20S473A7491/3

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20J300A6041/1

X 2

Copper ring valve 3rd stage

20J309A90957

X 2

Gasket in/out 3rd cylindre

2ND AND 3RD STAGE MAINTENANCE
20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J300A7030/0

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314a842021

X 1

Gasket for scrapper box

20J314A6100/1

X 8

O-ring valve cover 2nd stage

20J314A6100

X 2

O-ring valve cover 3rd stage

20J309A90957

X 2

Outlet separator 2nd stage

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S241A7492/1A

X 3

Rider piston ring 2nd stage

20S243A882013W

X 1

Rider piston ring 3rd stage

20B108A7005/2

X 1

Scrapper rings

20S243045

X 1

Sealing piston ring 2nd stage

20S241072W

X 5

Sealing piston ring 3rd stage

20J300KZ7269

X 4

Unloader gasket 2nd satge

20J300KZ7269

X 4

Unloader gasket 3rd satge

20D311KZ1026

X 4

Unloader guiding 2nd stage

20D311KZ1026

X 4

Unloader guiding 3rd stage

20M32086544592

X 4

Unloader mambrane 2nd stage

20M32086544592

X 4

Unloader mambrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K101A7499/3

X 1

2nd stage inlet valve repair kit

20K103A7499/4

X 1

2nd stage outlet valve repair kit

20K101A7491/1

X 1

3rd stage inlet valve repair kit

20K103A7491/3

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S471A7499/1

X 4

1st stage inlet valve

20K101A7499/1

X 4

1st stage inlet valve repair kit

20S473A7499/2

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
40R24067/903

X 1

1st stage cooler

20F10267/903

X 1

1st stage pipe bundle

20F10067/906

X 1

2nd stage pipe bundle

40F10267/1034

X 1

Final cooler pipe bundle

20J309A7041/1

X 1

Intlet 2nd stage gasket

20J309A90957

X 2

Intlet 3rd stage gasket

20J300A7030/5

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4524/2V

X 4

1st stage cooler gasket

20B105A4524/1

X 1

2nd stage cooler gasket

20J309A90957

X 2

Air tank outlet gasket

DRIVE BELTS
20C791040

X 1

Belts

BEARINGS
20C800A8219/9

X 2

Big end bearing

CONNECTING RODS
20V323A3884/1

X 4

Connecting rod screws

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/2

X 2

Crosshead visit door gasket

20G52417105050

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 2

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 2

Dryer filter O-ring

OIL FILTER GASKETS
73J300A98015

X 1

Oil filter gasket

OIL FILTER SEALING RING
20R556A123/2

X 1

Sealing ring for oil filter plug

SUCTION & VACUUM PUMPS
20C170A815015

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K103A7499/2

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve

20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J310006

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314A842021

X 1

Gasket for scrapper box

20J314A6100/1

X 8

O-ring valve cover

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S243048

X 1

Rider piston ring

20B108A7005/2

X 1

Scrapper rings

20S241077

X 2

Sealing piston ring

20J300KZ7269

X 4

Unloader gasket

20D311KZ1026

X 4

Unloader guiding

20M32086544592

X 4

Unloader membrane

2ND STAGE COOLING SYSTEM MAINTENANCE
40R24067/1034

X 1

2nd stage cooler

40R24067/906

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20J30953/589

X 1

2nd Stage Distance Piece

20S471A7499/3

X 1

2nd stage inlet valve

20S473A7499/4

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve 2nd stage

20J309A7041/1

X 1

Inlet 2nd stage gasket

20B105A4524/1

X 1

Inlet separator 2nd stage

20S243022/1

X 1

Rider piston ring 2nd stage

20S241028

X 3

Sealing piston ring 2nd stage

20D311KZ1026

X 4

Unloader guiding 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/1

X 1

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471A7491/1

X 1

3rd stage inlet valve

20S473A7491/3

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20J300A6041/1

X 2

Copper ring valve 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J31053/542

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314A842021

X 1

Gasket for scrapper box

20J309A90957

X 1

Gasket in/out 3rd cylinder

20J309A90957

X 1

Inlet 3rd stage gasket

20J314A6100/1

X 8

O-ring valve cover 2nd stage

20J314A6100

X 2

O-ring valve cover 3rd stage

20J309A90957

X 1

Outlet separator 2nd stage

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S243A882013W

X 1

Rider piston ring 3rd stage

20B108A7005/2

X 1

Scrapper rings

20S241072W

X 5

Sealing piston ring 3rd stage

20J300KZ7269

X 4

Unloader gasket 2nd stage

20D311KZ1026

X 4

Unloader guiding 3rd stage

20M32086544592

X 4

Unloader membrane 2nd stage

20M32086544592

X 4

Unloader membrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K101A7499/3

X 1

2nd stage inlet valve repair kit

20K103A7499/4

X 1

2nd stage outlet valve repair kit

20K101A7491/1

X 1

3rd stage inlet valve repair kit

VALVE KITS
20S471A7499/1

X 4

1st stage inlet valve

20K101A7499/1

X 4

1st stage inlet valve repair kit

20S473A7499/2

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
40R24067/903

X 1

1st stage cooler

20F10267/903

X 1

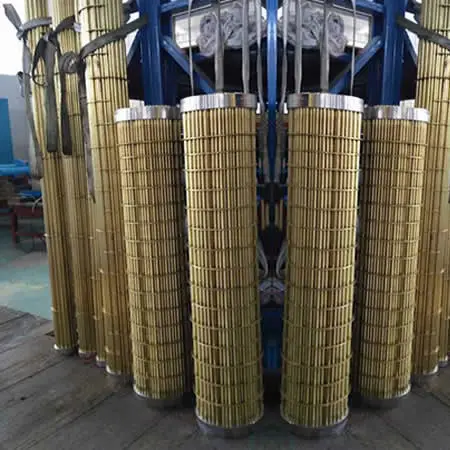

1st stage pipe bundle

40F10067/906

X 1

2nd stage pipe bundle

40F10267/1034

X 1

Final cooler pipe bundle

20J300A7030/5

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4524/2V

X 4

1st stage cooler gasket

20B105A4524/1

X 1

2nd stage cooler gasket

20J309A90957

X 1

Air tank outlet gasket

BEARINGS
20C800A8219/9

X 2

Big end bearing

CONNECTING RODS
20V323A3884/1

X 4

Connecting rod screws

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/2

X 2

Crosshead visit door gasket

AIR FILTER
7FE331E9-32-11

X 2

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 2

Dryer filter O-ring

SUCTION & VACUUM PUMPS
20C170A815015

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K103A7499/2

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve

20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J310006

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314a842021

X 1

Gasket for scrapper box

20J314A6100/1

X 8

O-ring valve cover

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S243A7493/2

X 1

Rider piston ring

20B108A7005/2

X 1

Scrapper rings

20S241A7493/1

X 2

Sealing piston ring

20J300KZ7269

X 4

Unloader gasket

20D311KZ1026

X 4

Unloader guiding

20M32086544592

X 4

Unloader mambrane

2ND STAGE COOLING SYSTEM MAINTENANCE
40R24067/1034

X 1

2nd stage cooler

40R24067/906

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S471A7499/3

X 1

2nd stage inlet valve

20S473A7499/4

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J312A6006

X 8

Copper ring valve 2nd stage

20B105A4524/1

X 1

Inlet separator 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/1

X 1

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471A7491/1

X 1

3rd stage inlet valve

20S473A7491/3

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20J300A6041/1

X 2

Copper ring valve 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20G52417108140

X 1

Crosshead split pin

20J300A7030/2

X 2

Crosshead visit door gasket

20J300A7030/0

X 1

Cylinder head gasket

20J300A6112

X 1

Deflector gasket

20J314a842021

X 1

Gasket for scrapper box

20J309A90957

X 2

Gasket in/out 3rd cylindre

20J314A6100/1

X 8

O-ring valve cover 2nd stage

20J314A6100

X 2

O-ring valve cover 3rd stage

20J309A90957

X 2

Outlet separator 2nd stage

20B520A7005/4

X 1

Packing box bottom gasket

20B105A7498/1

X 4

Packing ring

20S241A7492/1A

X 3

Rider piston ring 2nd stage

20S243A882013W

X 1

Rider piston ring 3rd stage

20B108A7005/2

X 1

Scrapper rings

20S243045

X 1

Sealing piston ring 2nd stage

20S241072W

X 5

Sealing piston ring 3rd stage

20J300KZ7269

X 4

Unloader gasket 2nd satge

20J300KZ7269

X 4

Unloader gasket 3rd satge

20D311KZ1026

X 4

Unloader guiding 2nd stage

20D311KZ1026

X 4

Unloader guiding 3rd stage

20M32086544592

X 4

Unloader mambrane 2nd stage

20M32086544592

X 4

Unloader mambrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K101A7499/3

X 1

2nd stage inlet valve repair kit

20K103A7499/4

X 1

2nd stage outlet valve repair kit

20K101A7491/1

X 1

3rd stage inlet valve repair kit

20K103A7491/3

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S471A7499/1

X 4

1st stage inlet valve

20K101A7499/1

X 4

1st stage inlet valve repair kit

20S473A7499/2

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
40R24067/903

X 1

1st stage cooler

20F10267/903

X 1

1st stage pipe bundle

20F10067/906

X 1

2nd stage pipe bundle

40F10267/1034

X 1

Final cooler pipe bundle

20J309A7041/1

X 1

Intlet 2nd stage gasket

20J309A90957

X 2

Intlet 3rd stage gasket

20J300A7030/5

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4524/2V

X 4

1st stage cooler gasket

20B105A4524/1

X 1

2nd stage cooler gasket

20J309A90957

X 2

Air tank outlet gasket

DRIVE BELTS
20C791040

X 1

Belts

BEARINGS
20C800A8219/9

X 2

Big end bearing

CONNECTING RODS
20V323A3884/1

X 4

Connecting rod screws

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/1

X 1

Crankcase visit door gasket

20J300A7030/2

X 2

Crosshead visit door gasket

20G52417105050

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 2

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 2

Dryer filter O-ring

OIL FILTER GASKETS
73J300A98015

X 1

Oil filter gasket

OIL FILTER SEALING RING
20R556A123/2

X 1

Sealing ring for oil filter plug

SUCTION & VACUUM PUMPS
20C170A815015

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K103A7479WDE

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6046/1

X 8

Copper ring valve

20G52417108160

X 1

Crosshead split pin

20J300A8502/0

X 2

Crosshead visit door gasket

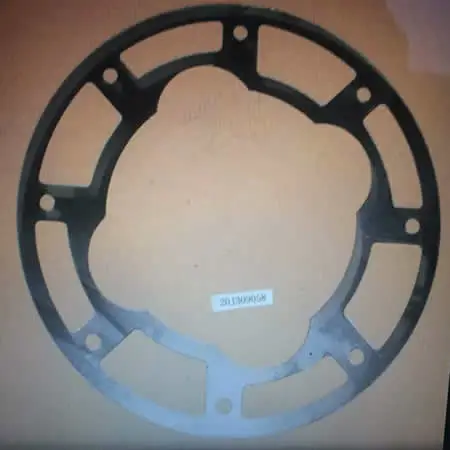

20J309058

X 1

Cylindre head gasket

20J314A6000/3

X 1

Deflector gasket

20J314036

X 1

Gasket for scrapper box

20J314A842053

X 8

O-ring valve cover

20J300A8501/3

X 1

Packing box bottom gasket

20B105A37655

X 3

Packing ring

20S243051

X 1

Rider piston ring

20B108A7400/5

X 1

Scrapper rings

20S241082

X 2

Sealing piston ring

20B105GGV30973

X 4

Unloader gasket

20B700BP32884

X 4

Unloader guiding

20M320MSC34892

X 4

Unloader mambrane

2ND STAGE COOLING SYSTEM MAINTENANCE
20R24067/903

X 1

2nd stage cooler

20R24067/908

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S47170/3775

X 1

2nd stage inlet valve

20S47370/3776

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20j312a842056

X 2

Copper ring valve 2nd stage

20B105A4524/2VD80

X 1

Inlet separator 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/2V

X 4

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471A4040WE

X 1

3rd stage inlet valve

20S473A4041WE

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20j312a6027

X 2

Copper ring valve 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20G52417108160

X 1

Crosshead split pin

20J300A8502/0

X 2

Crosshead visit door gasket

20J30953/590

X 1

Cylindre head gasket

20J314A6000/3

X 1

Deflector gasket

20J314036

X 1

Gasket for scrapper box

20J309A90958

X 2

Gasket in/out 3rd cylindre

20j314032

X 2

O-ring valve cover 2nd stage

20j314023

X 2

O-ring valve cover 3rd stage

20J309A90958

X 2

Outlet separator 2nd stage

20J300A8501/3

X 1

Packing box bottom gasket

20B105A37655

X 3

Packing ring

20S243039R

X 2

Rider piston ring 2nd stage

20S243040WM

X 1

Rider piston ring 3rd stage

20B108A7400/5

X 1

Scrapper rings

20S241A8219/1

X 2

Sealing piston ring 2nd stage

20S241065W

X 5

Sealing piston ring 3rd stage

20b105ggv30973

X 4

Unloader gasket 2nd satge

20b105ggv30973

X 4

Unloader gasket 3rd satge

20b700bp32884

X 4

Unloader guiding 2nd stage

20b700bp32884

X 4

Unloader guiding 3rd stage

20m320msc34892

X 4

Unloader mambrane 2nd stage

20m320msc34892

X 4

Unloader mambrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko 2nd stage

20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K10170/3775

X 1

2nd stage inlet valve repair kit

20K10370/3776

X 1

2nd stage outlet valve repair kit

20K101A4040WE

X 1

3rd stage inlet valve repair kit

20K103A4041WE

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S471A7480WDE

X 4

1st stage inlet valve

20K101A7480WDE

X 4

1st stage inlet valve repair kit

20S473A7479WDE

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
20R24067/910

X 1

1st stage cooler

20F10267/910

X 1

1st stage pipe bundle

20F10267/903

X 1

2nd stage pipe bundle

40F10267/908

X 1

Final cooler pipe bundle

20J309A90962

X 1

Intlet 2nd stage gasket

20J309A90958

X 2

Intlet 3rd stage gasket

20J300A8501/7

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4523/1V

X 4

1st stage cooler gasket

20B105A4524/2V

X 4

2nd stage cooler gasket

20J309A90960

X 1

Air tank inlet gasket

20J309A90957

X 1

Air tank outlet gasket

DRIVE BELTS
20C7914SPC50STR

X 1

Belts

BEARINGS
20C803A4100SAMR

X 2

Big end bearing

CONNECTING RODS
20V323A7402

X 4

Connecting rod screws

20J300A8501/4

X 1

Crankcase visit door gasket

20J300A8501/4

X 1

Crankcase visit door gasket

20J300A8502/0

X 2

Crosshead visit door gasket

20E221A8500/8

X 4

Safety nut

20V321A896012

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 3

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 3

Dryer filter O-ring

OIL FILTER GASKETS
73j300a98015

X 1

Oil filter gasket

OIL FILTER SEALING RING
20r556a123/2

X 1

Sealing ring for oil filter plug

SUCTION & VACUUM PUMPS
20C171023

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K10370/4147

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A842056

X 12

Copper ring valve

20J309012

X 1

Crosshead visit door gasket

20J309013

X 1

Crosshead visit door gasket

20J309015

X 1

Cylindre head gasket

20J314A6000/4

X 1

Deflector gasket

20J314009

X 1

Gasket for scrapper box

20J314A6100/3

X 12

O-ring valve cover

20J301001

X 1

Packing box bottom gasket

20B108060A376S

X 3

Packing ring

20S243041

X 2

Rider piston ring

20B108011

X 1

Scrapper rings

20S241067

X 3

Sealing piston ring

20B105GGV30973

X 6

Unloader gasket

20B700BP32884

X 6

Unloader guiding

20M320MSC34892

X 6

Unloader mambrane

2ND STAGE COOLING SYSTEM MAINTENANCE
20R240D203/900

X 1

2nd stage cooler

40R24067/706B

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S47170/3775

X 2

2nd stage inlet valve

20S47370/3776

X 2

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J312A842056

X 12

Copper ring valve 2nd stage

20B105A4523/1V

X 1

Inlet separator 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20J309069

X 2

3rd stage cooler gasket (II)

3RD STAGE VALVE KITS
20S471007PK

X 1

3rd stage inlet valve

20S473007PK

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20J305002

X 2

Copper ring valve 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20J309012

X 1

Crosshead visit door gasket

20J309013

X 1

Crosshead visit door gasket

20J30953/539

X 1

Cylinder head gasket

20J314A6000/4

X 1

Deflector gasket

20J314009

X 1

Gasket for scrapper box

20J309A90960

X 1

Gasket in/out 3rd cylinder

20J309A90960

X 1

Inlet antipulsator tank

20J314A6100/3

X 12

O-ring valve cover 2nd stage

20J314081

X 2

O-ring valve cover 3rd stage

20J309A90960

X 1

Outlet separator 2nd stage

20J301001

X 1

Packing box bottom gasket

20B108060A376S

X 3

Packing ring

20S243056

X 2

Rider piston ring 2nd stage

20S243055WM

X 1

Rider piston ring 3rd stage

20B108011

X 1

Scrapper rings

20S241007

X 3

Sealing piston ring 2nd stage

20S241086W

X 5

Sealing piston ring 3rd stage

20B105GGV30973

X 6

Unloader gasket 2nd stage

20B105GGN30973

X 2

Unloader gasket 3rd stage

20P700BP32884

X 2

Unloader guiding 2nd stage

20B700BPO30974

X 1

Unloader guiding 3rd stage

20M320MSC34892

X 6

Unloader membrane 2nd stage

20M320MSC0003

X 1

Unloader membrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEk13/45

X 1

Repair kit Beko 2nd stage

20P500BEk13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K10170/6141

X 2

2nd stage inlet valve repair kit

20K10370/6142

X 2

2nd stage outlet valve repair kit

20K101007PK

X 1

3rd stage inlet valve repair kit

20K103007PK

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S24170/4146

X 6

1st stage inlet valve

20K10170/4146

X 4

1st stage inlet valve repair kit

20S47370/4147

X 6

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
20R240D203/900

X 1

1st stage cooler

40F10267/971

X 1

1st stage pipe bundle

40F10267/971

X 1

2nd stage pipe bundle

40F100A3980/1

X 1

Final cooler pipe bundle

20J309A90963

X 2

Intlet 2nd stage gasket

20J309A90960

X 1

Intlet 3rd stage gasket

20J309014

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4523/1V

X 1

1st stage cooler gasket

20B105A4523/1V

X 1

2nd stage cooler gasket

20J309A90959

X 3

Air tank outlet gasket

DRIVE BELTS
20C7915.8V2500

X 2

Belts

BEARINGS
20C80316/162

X 2

Big end bearing

CONNECTING RODS
20V32317/089

X 4

Connecting rod screws

20J309011

X 1

Crankcase visit door gasket

20j309011

X 1

Crankcase visit door gasket

20J309012

X 1

Crosshead visit door gasket

20J309013

X 1

Crosshead visit door gasket (II)

20E220A3682/1

X 4

Safety nut

20V321A896034

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 4

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 4

Dryer filter O-ring

20J314004V

X 1

O-ring between cylinders

OIL FILTER GASKETS
73J300A98015

X 1

Oil filter gasket

OIL FILTER SEALING RING
20r556a123/2

X 1

Sealing ring for oil filter plug

SUCTION & VACUUM PUMPS
20C171016POLY

X 1

Suction filter cartridge

1ST STAGE OUTLET VALVE REPAIR KITS
20K103a7479wde

X 4

1st stage outlet valve repair kit

1ST STAGE MAINTENANCE
20J312A6046/1

X 8

Copper ring valve

20G52417108160

X 1

Crosshead split pin

20J300A8502/0

X 2

Crosshead visit door gasket

20J309058

X 1

Cylindre head gasket

20J314A6000/3

X 1

Deflector gasket

20J314036

X 1

Gasket for scrapper box

20J314A842053

X 8

O-ring valve cover

20J300A8501/3

X 1

Packing box bottom gasket

20B105A37655

X 3

Packing ring

20S243051STA

X 1

Rider piston ring

20B108A7400/5

X 1

Scrapper rings

20S241082STA

X 2

Sealing piston ring

20B105GGV30973

X 4

Unloader gasket

20B700BP32884

X 4

Unloader guiding

20M320MSC34892

X 4

Unloader mambrane

2ND STAGE COOLING SYSTEM MAINTENANCE
20R24067/908

X 1

2nd stage cooler

20R240D203/900

X 1

2nd stage cooler

2ND STAGE VALVE KITS
20S47170/3775

X 1

2nd stage inlet valve

20S47370/3776

X 1

2nd stage outlet valve

2ND STAGE MAINTENANCE
20J309A90960

X 1

2nd stage separator

20j312a842056

X 2

Copper ring valve 2nd stage

20b105a4524/2v

X 2

Inlet separator 2nd stage

3RD STAGE COOLING SYSTEM MAINTENANCE
20B105A4524/2V

X 2

3rd stage cooler gasket

3RD STAGE VALVE KITS
20S471a4040we

X 1

3rd stage inlet valve

20S473a4041we

X 1

3rd stage outlet valve

3RD STAGE MAINTENANCE
20j312a6027

X 2

Copper ring valve 3rd stage

2ND AND 3RD STAGE MAINTENANCE
20G52417108160

X 1

Crosshead split pin

20J300A8502/0

X 2

Crosshead visit door gasket

20J30953/590

X 1

Cylindre head gasket

20J314A6000/3

X 1

Deflector gasket

20J314036

X 1

Gasket for scrapper box

20J309A90958

X 1

Gasket in/out 3rd cylindre

20j314032

X 2

O-ring valve cover 2nd stage

20j314023

X 2

O-ring valve cover 3rd stage

20J309A90960

X 1

Outlet separator 2nd stage

20J300A8501/3

X 1

Packing box bottom gasket

20B105A37655

X 3

Packing ring

20S243039STA

X 2

Rider piston ring 2nd stage

20S243040STA

X 1

Rider piston ring 3rd stage

20B108A7400/5

X 1

Scrapper rings

20S241A8219/1STA

X 2

Sealing piston ring 2nd stage

20S241065STA

X 5

Sealing piston ring 3rd stage

20b105ggv30973

X 4

Unloader gasket 2nd satge

20b105ggv30973

X 4

Unloader gasket 3rd satge

20b700bp32884

X 4

Unloader guiding 2nd stage

20b700bp32884

X 4

Unloader guiding 3rd stage

20m320msc34892

X 4

Unloader mambrane 2nd stage

20m320msc34892

X 4

Unloader mambrane 3rd stage

SERVICE AND MAINTENANCE KIT
20P500BEK13/45

X 1

Repair kit Beko 2nd stage

20P500BEK13/45

X 1

Repair kit Beko air tank

INLET & OUTLET VALVE REPAIR KITS
20K10170/3775

X 1

2nd stage inlet valve repair kit

20K10370/3776

X 1

2nd stage outlet valve repair kit

20K101a4040we

X 1

3rd stage inlet valve repair kit

20K103a4041we

X 1

3rd stage outlet valve repair kit

VALVE KITS
20S471a7480wde

X 4

1st stage inlet valve

20K101a7480wde

X 4

1st stage inlet valve repair kit

20S473a7479wde

X 4

1st stage outlet valve

COOLING SYSTEM SERVICE & MAINTENANCE
20R240D203/900

X 1

1st stage cooler

20F10267/971

X 1

1st stage pipe bundle

20F10267/971

X 1

2nd stage pipe bundle

40F10267/908

X 1

Final cooler pipe bundle

20J309A90962

X 2

Intlet 2nd stage gasket

20J309A90958

X 1

Intlet 3rd stage gasket

20J300A8501/7

X 1

Outlet 1st stage gasket

COOLING SYSTEM GASKETS
20B105A4523/1V

X 4

1st stage cooler gasket

20B105A4523/1V

X 4

2nd stage cooler gasket

20J309A90960

X 1

Air tank inlet gasket

20J309A90957

X 1

Air tank outlet gasket

DRIVE BELTS
20C7914SPC50STR

X 1

Belts

BEARINGS
20C803A4100SAMR

X 2

Big end bearing

CONNECTING RODS
20V323A7402

X 4

Connecting rod screws

20J300A8501/4

X 1

Crankcase visit door gasket

20j300a8501/4

X 1

Crankcase visit door gasket

20J300A8502/0

X 2

Crosshead visit door gasket

20E221A8500/8

X 4

Safety nut

20V321A896012

X 4

Safety pin/screw

AIR FILTER
7FE331E9-32-11

X 3

Dryer air filter cartridge

O'RINGS
7FJ31478002219

X 3

Dryer filter O-ring

OIL FILTER GASKETS
73j300a98015

X 1

Oil filter gasket

OIL FILTER SEALING RING
20r556a123/2

X 1

Sealing ring for oil filter plug

SUCTION & VACUUM PUMPS
20C171023

X 1

Suction filter cartridge

Disclaimer

ANY LISTED PART NUMBERS, PRODUCTS, MANUFACTURERS, BRANDS AND DESCRIPTIONS ARE THE PROPERTY OF THE ORIGINAL OEM MANUFACTURER WHO IS THE OWNER. THEY ARE LISTED HERE FOR REFERENCE PURPOSES ONLY!. NPS COMPRESSED AIR PARTS HAS NO AFFILIATION TO ANY OF THEM AND IS NOT ASSOCIATED WITH ANY OF THEM.

Other services offered for your AF Ateliers Francois Air Compressor

  • AF Ateliers Francois New Machine Installations

  • AF Ateliers Francois Air Compressor Machine Parts

  • AF Ateliers Francois Airend Rebuild

  • AF Ateliers Francois Air Compressor OEM Parts

  • We Sell AF Ateliers Francois Compressor Genuine Parts

  • AF Ateliers Francois Compressor Preventive Maintenance

Contact Us to Learn more about the Products we offer for AF Ateliers Francois Air Compressors.

NPS Compressed Air Parts is a Worldwide Distributor & Supplier of AF Ateliers Francois Air Compressor Parts in Asia

We Ship AF Ateliers Francois Air Compressor Products Globally:

  • we offer AF Ateliers Francois replacement parts in China

  • spare parts for AF Ateliers Francois air compressors in Dubai

  • air compressor replacement parts for AF Ateliers Francois air compressors in Hong Kong

  • compressed air parts for AF Ateliers Francois in India

  • brand new AF Ateliers Francois spare parts in Japan

  • AF Ateliers Francois compressed air parts around Jordan

  • AF Ateliers Francois air compressor parts for sale in Qatar

  • AF Ateliers Francois air compressor parts in Russia

  • find AF Ateliers Francois replacement parts in Turkey

  • replacement air compressor parts for AF Ateliers Francois in UAE

  • And Anywhere Else in the World!

NPS Compressed Air Parts provides shipping for AF Ateliers Francois Air Compressor Spare Parts in Asia

We Sell & Distribute AF Ateliers Francois Air Compressor Products

  • compressor Oil and Lubricants replacement for Atlas Copco in Qatar

  • Ingersoll Rand Tanks and Timers spare parts in Japan

  • Air Filters for Atlas Copco air compressors in Turkey

  • Air Filters for Broomwade compressed air machines for sale in Jordan

  • Service Kits replacement for Hydrovane air compressors in China

  • Hydrovane air compressor replacement Service Kits in India

  • Broomwade air compressor Air Filters in UAE

  • Atlas Copco air compressor Air Filters for sale in Dubai

  • compressed air replacement parts and Tanks and Timers in Russia for Ingersoll Rand air compressors

  • air compressor Oil and Lubricants in Hong Kong for Atlas Copco

Let’s Get in Touch

ASK US ABOUT THE CORRECT SPARE PART

Not Sure About the Part Number? Email Us

CONTACT US | REQUEST A QUOTE
High Quality Air Compressor Parts

HIGH QUALITY

As a Global Trusted Distributor of Air compressor Parts, we offer High-Quality Spare Parts built specifically to fit your Air Compressor Model.

Affordable Air Compressor Parts

AFFORDABLE

We Offer Affordable and Competitive Prices that no other company can match because we have the largest network of partners and warehouses Worldwide.

Puzzle and Dots background image

WHO WE ARE

We focus on providing Innovative High-Performance Parts to Solve Business Challenges and Enhance Productivity.

NPS Compressed Air Parts is a Worldwide Distributor and Supplier of Premium High-Quality and Affordable Air Compressor Parts in Europe, Asia, USA, Canada, Middle East, KSA, UAE, Qatar and Worldwide.

Explore Air Compressor Parts

Some of Our Clients
